In 2016 alone, 216 million people were diagnosed with malaria, and in the same year, 445,000 died from the disease. Spread through parasites that are carried by mosquitoes, once a person is infected, the symptoms of malaria are similar to the common flu with muscle aches, fever and a headache. But unlike the common flu, if left untreated, malaria can quickly progress in severity, often proving fatal.

Malaria is endemic in several areas of Ethiopia but the Gambella region – on the border with South Sudan – has particularly high rates of the disease. In fact, out of the more than 81,000 people that MSF treated for malaria in Ethiopia in 2017, over 72,000 were from Gambella. There, MSF provides medical services to about 800,000 people, half of whom are South Sudanese refugees living in various camps across the region.

Catching Mosquitoes to Fight Malaria

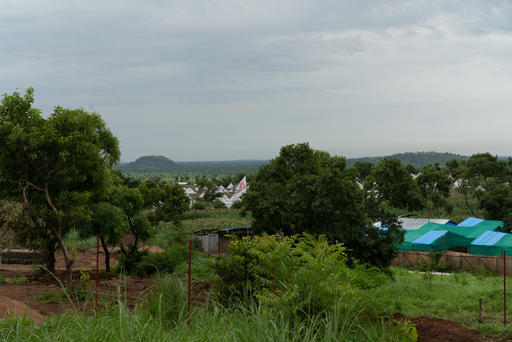

A view of the MSF base in Ngunyyiel refugee camp, Gambella, Ethiopia.
Gabriele François Casini/MSF

In an effort to reduce the amount of people who are infected with the parasite, MSF decided to conduct a rapid entomological assessment around Kule, Nguenyyiel and Tierkidi refugee camps. The main aim of this research is to find out how to better protect the population from mosquitoes. Due to the difficult living conditions, the camps’ population is particularly vulnerable.

Jeanine Loonen is the MSF entomologist who carried out the study in partnership with the Ethiopian Public Health Institute. We interviewed her to find out more about her work.

What is the objective of the study?

The work that I am doing right now in Ethiopia is a rapid entomological assessment in the Kule, Tierkidi and Nguenyyiel refugee camps, where MSF has its projects. The main objective is to identify the different kind of mosquitoes that live around this area - especially malaria mosquitoes - and see if they are still susceptible to the insecticides that MSF use for vector control.

Once the study is completed, we will be able to adjust the vector control protocols and identify the right kind of insecticide to use because different types of mosquitoes respond to different insecticides. Also, some of them bite mainly inside houses, while others live and bite outside. This means that you have to adapt the vector control method to the specific types of mosquitoes present in the area that you are targeting.

Catching Mosquitoes to Fight Malaria
MSF community outreach teams get mosquito traps that they will distribute to refugee households.
Gabriele François Casini/MSF

0M

216M

people diagnosed with malaria worldwide in 2016

0

445,000

people who died from malaria in 2016

0

81,000

people MSF treated for malaria in Ethiopia in 2017
Catching Mosquitoes to Fight Malaria

How do you identify the different kind of mosquitoes?

To find out what species are around, we place mosquito traps (called CDC light traps) in several randomly selected shelters around the camps. We install the traps next to the beds, so that the mosquitoes will be attracted by the sleeping person but then they will be sucked in by the trap, which is equipped with a light and a fan. The next morning, we will collect the traps and take them to the lab, where we use microscopes to see what kind of mosquitoes were caught throughout the night.

So far we have identified three different species of mosquitoes in the Gambella area: culex mosquitoes – which can be vectors for Japanese encephalitis; anopheles mosquitoes – the vectors for malaria; and aedes mosquitoes – which can carry dengue, chikungunya and Zika viruses.

The fact that a specific species of mosquito is present doesn’t necessarily mean however that they carry their respective parasites and viruses. This will be determined at a later stage with the molecular analysis of the mosquitoes, which will be carried out in Europe.

Catching Mosquitoes to Fight Malaria
Jeanine Loonen – MSF entomologist – explains the setup and functioning of mosquito traps to the MSF outreach workers that will distribute them to the selected refugee households.
Gabriele François Casini/MSF
Catching Mosquitoes to Fight Malaria

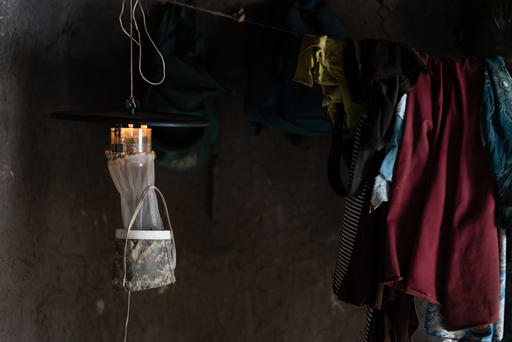

In order to track the spread of malaria, mosquito traps need to be installed over the sleeping area of the shelter, where mosquitoes will be attracted by people sleeping at night. The traps consist of a light to attract mosquitoes and a fan that will suck them into the netted basket underneath.
Gabriele François Casini/MSF
Catching Mosquitoes to Fight Malaria

How do you determine which insecticide is effective?

Doing that involves the collection of mosquito larvae in various breeding sites around the camps. We grow the larvae to adult mosquitoes by bringing them to our lab and keeping them in trays filled with water. We feed them with fish food until they turn into pupae. Then we transfer them to small cups that are placed in special cages.

After around two days in the cages, the pupae will develop into adult mosquitoes that will be used for two different experiments. The first is called 'WHO tube bioassay' or susceptibility bioassay, which consists of putting mosquitoes in a tube with insecticide-impregnated paper for one hour and then transferring them to a clean tube. We will then see how many died and how many survived, helping us to understand whether that specific insecticide is effective.

The second experiment is called 'WHO cone bioassay' and is used to test impregnated mosquito nets as well as other surfaces that have been sprayed with insecticide. We expose the mosquitoes to the mosquito net or to a wall to see if the chemicals used are effective in killing them. The study will test 14 different types of insecticide.



Catching Mosquitoes to Fight Malaria
Catching mosquito larvae is a very fascinating activity for the children living in the camp. They often want to join and help. Here some children watch MSF entomologist Jeanine Loonen catch mosquito larvae.
Gabriele François Casini/MSF
Catching Mosquitoes to Fight Malaria
Mosquito larvae caught in the field are kept in trays with water. They are fed with fish food until they turn into pupae, which will then be transferred in cages and fed with sugary water until they become adult.
Gabriele François Casini/MSF
Catching Mosquitoes to Fight Malaria

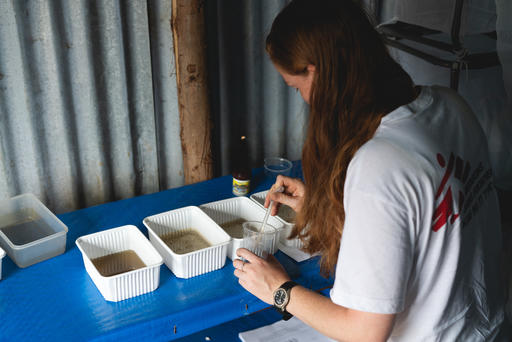

Jeanine Loonen, MSF entomologist, separates the mosquito pupae from the larvae, before placing them in specifically designed cages where they will grow into adults.
Gabriele François Casini/MSF
Catching Mosquitoes to Fight Malaria

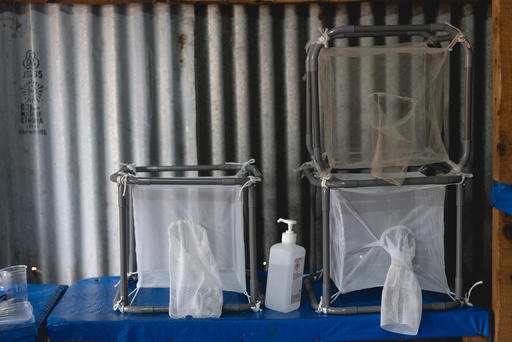

Mosquito cages monitored by Jeanine Loonen, MSF entomologist. The mosquito cages used by Jeanine were custom made by her sister and father. They designed them to be lightweight and resistant, so that Jeanine could easily transport them and use them in harsh environments.
Gabriele François Casini/MSF

Is there something special about the cages you use?

Yes! These mosquito cages were custom made by my dad and sister. I usually need two suitcases full of material for this kind of study, so I was looking for equipment that is light but can also survive field conditions. I discussed this with my sister and my dad, who helped me develop light and robust cages. My dad created the frame out of PVC tubes, while my sister designed and weaved the net that effectively keeps the mosquitoes trapped. They are not entomologists but they are very resourceful people. My cages are very unique.

What is the next step of the study?

After the field part of the study, we will take all the samples back to the Netherlands, where we will conduct a molecular analysis to identify the various subspecies that we collected and determine whether they are carrying parasites or viruses. This way, we will be able to create maps with hotspots of malaria transmission and use the most appropriate insecticide and bed net type to target them. Now we use new generation bed nets that are impregnated with insecticides anda synergist that reduces the level of insecticide resistance in mosquitoes.

What is it like to be an entomologist for MSF?

I love being an entomologist with MSF. The work is fascinating and we work in very interesting contexts. It’s always funny to arrive in a project and have people ask you: “Entomologist? What does MSF have to do with an entomologist?” When you start explaining what we are doing, people usually get really interested.
